Foil Drive Fusion Complete Kit

The Foil Drive Fusion combines the power and runtime of an efoil with the lightness and adaptability of an Assist. The Fusion truly earns its name as the perfect blend of both worlds.

As its name suggests, the Fusion is a genuine hybrid electric foil system that brings together the best of both worlds in one neat, versatile package. As a true alternative to classic efoils, the Fusion is the ideal tool for long sessions, beginners, and high-performance riders alike.

The Fusion is not limited to being just an efoil — by simply switching to a shorter cable, it transforms into an extremely powerful, long-runtime Foil Assist.

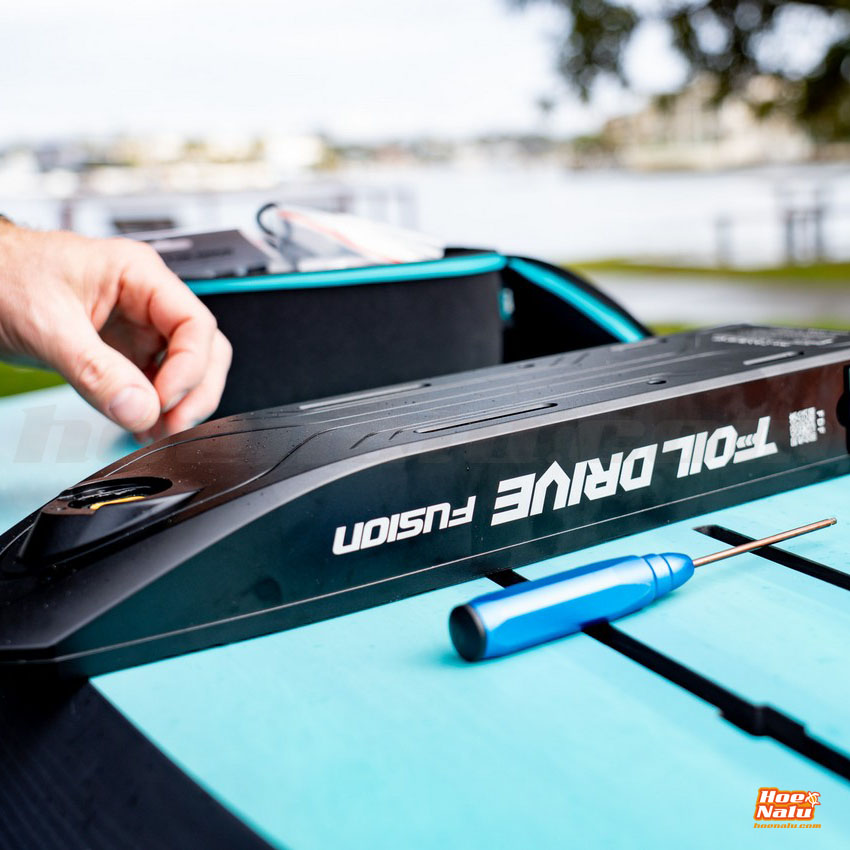

While maintaining the lightweight, sleek, and hydrodynamic shape of the Assist range, the Fusion delivers greater power and longer runtime thanks to the Fusion 860 Battery (864 Wh) and 43-volt electronics. The battery is a separate, removable unit with a fully sealed, one-piece housing and integrated nose cone, ensuring maximum durability, higher water resistance, and superior long-term reliability. This rugged, self-contained design also makes swapping, transporting, and protecting your power source effortless.

With the Fusion you get one single tool with endless possibilities. It’s designed for those who want a versatile efoil system or for riders seeking more power and longer ride time across any foil discipline: Surf, Wing, Downwind, Wake, and Flatwater.

Want maximum simplicity in installation and use? We recommend the integrated mast options.

Key Features of the Foil Drive Fusion:

• V3 Controller with built-in GPS: speed, distance, and full session logging
• Tilt sensor (IMU) with automatic motor safety cutoff
• Ultra-rugged one-piece battery with enhanced BMS and Bluetooth firmware updates
• Ultra-fast charging in 1.45 hours with storage mode options
• Slide-in tool caddy, titanium split bolts, and saltwater protection anodes
• Redesigned day-use and long-term storage cases
• Battery Caddy that doubles as a USB-A + USB-C power bank and storage discharger (included with the battery)

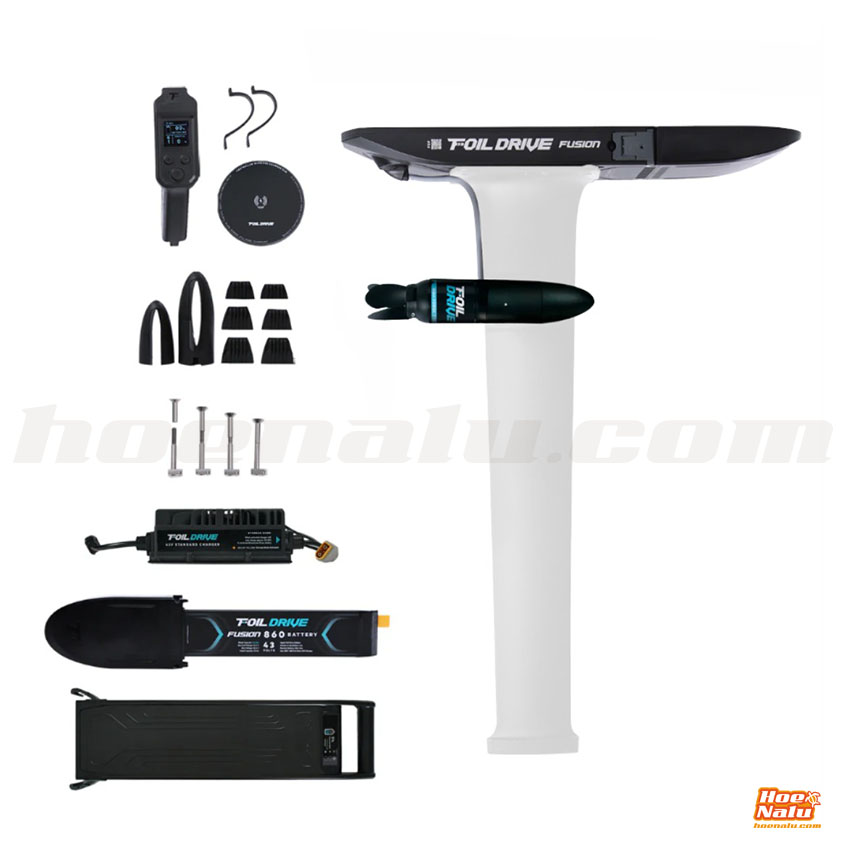

What’s included in this complete Foil Drive Fusion kit:

• Foil Drive Fusion (in Fusion case)
• Fusion 860 Battery and Caddy (in battery case)
• V3 Controller with Bump Guard already installed
• Universal Motor Pod
• Complete High Power Motor with 20 cm cable
• Standard 43 V 12 A charger with selected AC power cable
• 2 mast cable guides
• 1 Tool Caddy (inside the Fusion case)
• 4 silver titanium T40 M7 split bolts
• Charge pad and cable with EU plug
• Spare Bump Guard variation
• Wrist leash for the controller
• 1.5 mm Allen key for Bump Guard removal
• T40 driver
• T30 driver
• 2 × 15 g tubes of battery grease
• 2 Nose Cone Rocker Pads
• 3 titanium M4 10 mm motor plug bolts
• 1 replacement anode + 2 bolts
• 1 replacement electronics box O-ring (blue)
• 1 replacement motor plug O-ring (blue)
• 1 replacement motor cable O-ring (red)
• Microfiber towel
• Sticker pack

System Technical Specifications:

• System nominal voltage: 43.2 V
• Battery capacity: 864 Wh
• Maximum thrust: 34 kg / 74.9 lb
• Power-to-weight ratio (thrust/weight): 4.3 N/kg
• Minimum install weight*: 7.9 kg / 17.4 lb (with Fusion 860 Battery)
• Dimensions with battery: L 658 × W 125 × H 54 mm
• App compatibility: Foil Drive App (Android & iOS)
• Water & dust rating: IP68

Here’s a video about the new Foil Drive Fusion system:
